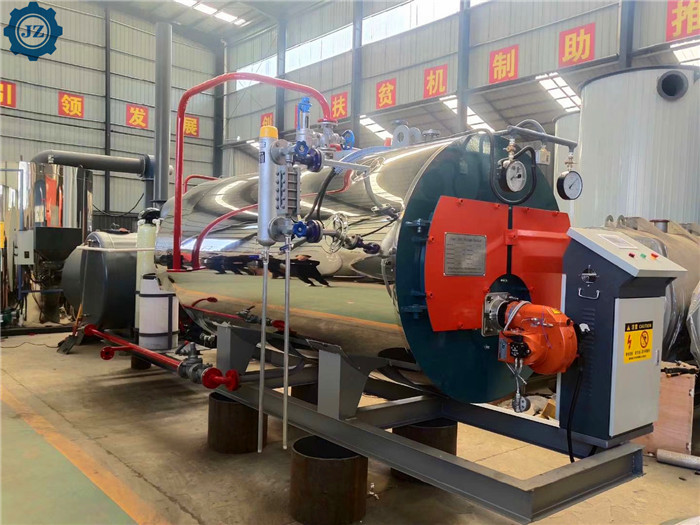

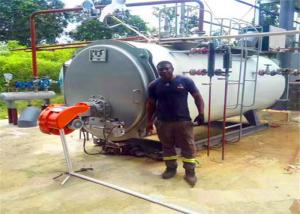

1 ton 1000kg/h 70hp Fuel Gas, Oil, Dual Fuel Packaged Steam Boiler with European Burner
WNS type automatic horizontal steam boiler is a horizontal quick - mounted internal - burning three - return - trip fire tube boiler.The bifurcated flue gas is used to wash the second and third return flue gas pipes successively, and then the flue gas chamber is discharged into the atmosphere through the chimney.The boiler is fitted with movable front and rear smoke box covers to facilitate boiler maintenance.
Steam Boiler applicable industry
hot spring bath, sauna room, printing and dyeing textile, factory office school, medical pharmacy, hotel catering, food processing, chemical plant, sock factory heat setting, clothing processing, industrial steam washing, heating drying farm.
Special Structure and High Efficiency: All system is well mounted on the base, its system is portable. The users no need to consider the pipeline installation, wire connection. After receiving the goods, just supply water, electricity, fuel. It is equipped with renowned brand burners(BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boiler's thermal efficiency up to 95%.
High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting plate rolling/
welding,100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent pene-trating check, hydraulic (water) pressure test, boiler thermal efficiency test, etc, to make sure all finished products is qualified.
Automatic Safe Operation: WNS series package steam boiler is equipped automatic burner ignition, automatic water-level control, auto-matic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system's working states on screen.
Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.
Steam Boiler Specification
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight |
| Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 |
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 |
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 |
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
Safety control system
We design the safety interlock system with multiple protection and alarm functions
- Protection program of automatic ignition
- Locking and protection program of operation
- Protection program of extinction
- Protection program of completion
- Protection program of water pumps (pressure loss)
- Protection program of ignition failure
- Protection program of combustion engine malfunction
- Protection program of combustion engine flameout
- Sound-light alarm of high pressure
- Sound-light alarm of high limit water level
- Sound-light alarm of low limit water level
- Sound-light alarm of super-high temperature of hot water
steam boiler water level control
boiler steam globe gate valve
pressure switch for steam boilers
water flow control for steam boiler
boiler steam globe gate valve
water level sensor for steam boilers
- Boiler body and big size accessories are in shrink wrap package;
- Burner, controller and small size accessories are packed in wooden box or carton.
- 0.5-2t boiler loaded in 1x 20GP
- 2.5-5t boiler loaded in 1x 40HQ
- 6t and bigger boiler loaded in special container.
