100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler

Henan Jinzhen Boiler Co., Ltd.
Contact Now

100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler

Brand Name : Jinzhen Boiler

Model Number : LSS0.3-0.7-Y/Q

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD 5000-9000 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Set/Sets per Year

Delivery Time : 10 to 12 days

Packaging Details : 0.5 ton steam boiler vertical Packing: Standard Export Wooden Package

Item : Small Steam Boiler

steam capacity : 300Kg/h, 0.3ton/hour, 30hp

pressure : 0.7Mpa(7bar) 0.8Mpa(8bar)

steam temperature : 170℃,175℃

Water capacity : 48L

Thermal efficiency : 95%

Weight : 1150kg

Output : Steam

fuel : Heavy oil,Furnace Oil, diesel, natural gas, LPG,

Usage : Washing industry, Food Industry

Type : Natural Circulation

Structure : Fire Tube

Style : vertical

Contact Now

100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler

Vertical Steam Boiler
Capacity :0.1-1t/h
Pressure :0.4/0.7Mpa
Fuel :Heavy oil,Furnace Oil, diesel, natural gas, LPG, etc.
Application : Pharmacy, dying& textile, paper making,farming, rubber processing, food and beverage, plastics and foam,building materials,chemical hotels, Light industry

LSS type vertical automatic steam generator without inspection has simple and accurate control technology, high thermal efficiency, short preheating time, and adopts arc-shaped tube structure to make the heat and cold exchange uniform and reach the set pressure at a higher speed. The steam pressure can reach 0.4mpa within 5-8 minutes after starting up. It is controlled by a one-key start button, and up to 4 time periods can be set to automatically start up and run. The equipment is equipped with multiple protection measures such as automatic water filling, pressure control, water shortage protection and alarm, automatic shutdown of extremely low water level, overpressure protection, and overpressure safety valve.

Technical Parameters

Model LSS0.1-0.4-Y LSS0.2-0.4-Y LSS0.3-0.4-Y(Q) LSS0.5-0.4-Y(Q) LSS0.7-0.4-Y(Q) LSS1-0.7-Y(Q)
(Q) (Q) LSS0.3-0.7-Y(Q) LSS0.5-0.7-Y(Q) LSS0.7-0.7-Y(Q) LSS1-1.0-Y(Q)
Rated steam capacity(t/h) 0.1 0.2 0.3 0.5 0.7 1
Rated steam pressure(Mpa) 0.4 0.4 0.4/0.7 0.4/0.7 0.4/0.7 0.7/1.0
Steam temperature(C) 151 151 151/170 151/170 151/170 170/184
Supply water temperature(C) 20 20 20 20 20 20
Thermal efficiency(%) 89 89.2 90.6 90.6 93.9 92
Fuel available Light diesel oil, heavy oil, natural gas
Motor General power(kw) 1.1 2.6 2.66 2.96 3.2 4
Fuel consumption Light oil (Kg/h) 6.6 14 20.62 34.37 46.53 67.88
Natural gas (Nm³/h) 9 19 24.98 41.69 56.22 82.61
Boiler weight(t) 0.83 1 2.113 2.657 3.64 3.75/3.9
Boiler size(m)(L×W×H) 0.8×1.94 0.9×2.7 1340×1300×2510 1540×1500×2860 1900×1800×3040 1900×1800×3310
Note: 1. The hot value of light oil: 10300kal/Nm3, hot value of natural gas :8500kcal/Nm3.
2. Parameter is for reference only, if any changes should follow actual drawings.

Performance Advantages
1.The small water volume, fast steam generating. LHS Series steam boiler has vertical design and compact structure, just requires small floor space;
2.Adopting large-volume steam chamber, and lay-in steam/water separator can produce high-quality steam stably;
3.The lay-in low water level protection device to detect the change of water level at any time, totally avoid dry-burning and operation accidents;
4.LSS Series vertical type steam boiler is equipped with high-quality pressure relief valve, water level electrode, water level gauge, pressure gauge, pressure controller, and other accessories to ensure boiler’s reliable operation.

Boiler Application
LSS series vertical steam generator can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. Even they can be used as a power plant boiler start-up.

100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler


Wholesale 100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler from china suppliers

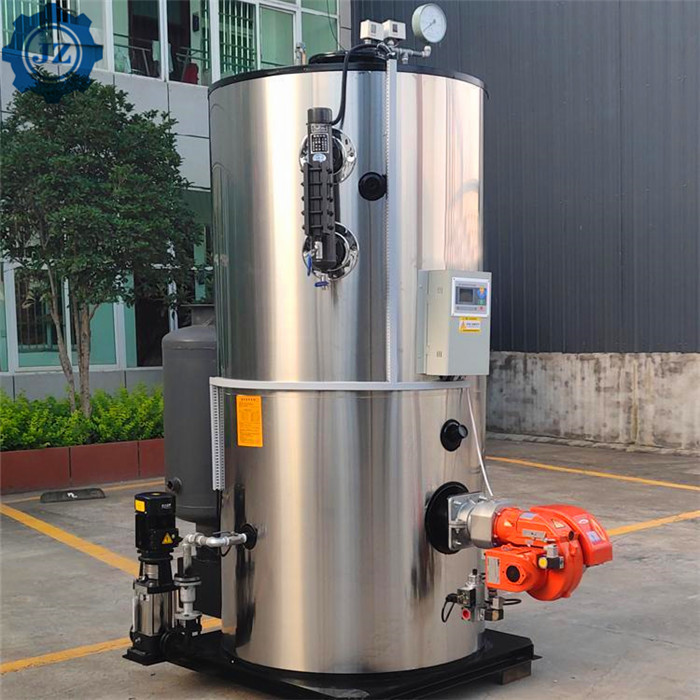

100KG 200KG 300KG 500KG Natural Gas LPG Oil Diesel Fired Vertical Steam Generator Boiler Images
